Products > Heavy Duty > Slewing rings

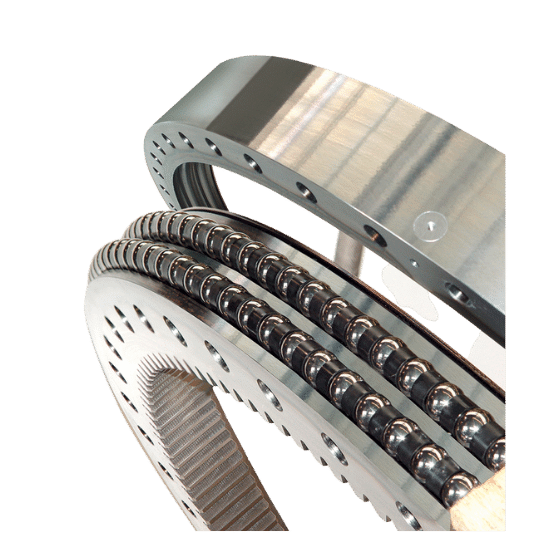

Our slewing ring bearings are designed to be able to handle high axial, radial and tilting moments, simultaneously. In addition, they can be combined with pinions (gears), planetary gears and motors, both hydraulic and electric.
They are used in various application areas, for example machines in infrastructure, agriculture, forestry, mining and the shipbuilding industry.
Contact us if you want our experts to help you find the right product.
• Designed to handle large axial, radial and tilting moments at the same time.
• Availability of dimensions 100 mm to 6000 mm with or without cogs
• Inner tooth or outer tooth
• Ball bearings or roller bearings
• Sealed bearing tracks
• Can be supplied with various types of certificates including classification for marine applications
Series 900 have a robust construction and are suitable for simpler applications. They are also available in a series with reduced or preloaded bearing play. Read more under general info.
Operating conditions:
• Permissible temperature range -25°C to +70°C
• Max permitted rotation speed 40000 / ball diameter
• With a horizontal axis of rotation 20000 / ball diameter
• Pressure load
• Bolt class 10.9
Areas of use:
Simple turntables, swing mechanisms, bogies, light cranes and construction machines
Characteristics:
• Robust design for heavy installations
• Cost effective design
• Suitable for use with low precision requirements
• For Series 920, precision versions are available.
Also available with:
Material in rings: C45N
Also available with:
Material in rings: C45N
Also available with:
Material in rings: C45N
Material in rings: C45N
Material in rings: C45N
Material in rings: C45N
An all-round series for most simpler applications that need to be cost optimized. They are insensitive to vibrations and four different designs provide a large selection.
Operating conditions:
• Permissible temperature range -25°C to +70°C
• Max permitted rotation speed (120, 125, 150) 40000 / ball diameter
• Max permitted rotation speed (116) 80000 / ball diameter
• Pressure load
• Bolt class 10.9
Areas of use:
Turntables, slewing mechanisms, bogies, light to medium cranes and construction machinery, winches, wind turbines, handling equipment.
Characteristics:
• Robust design
• Insensitive to vibrations
• Cost effective design
• Medium precision
• For series 116 and 120, precision versions are available
Contact one of our experts for more information.
Material in rings: C45N
Material in rings: C45N
Material in rings: C45N
Material in rings: C45N
Material in rings: C45N
Material in rings: C45N
Material in rings: C45N
Material in rings: C45N
Material in rings: 42CrMo4V
Material in rings: 42CrMo4V
IMO slewing ring bearings series 800 are suitable for medium loads. They have a very robust construction and are suitable for applications with high vibrations. They handle high axial loads and are insensitive to assembly against uneven foundations.
Operating conditions:
• Permissible temperature range -25°C to +70°C
• Max permitted rotation speed 40000 / ball diameter
• Pressure load
• Bolt class 10,9
Areas of use:
Turntables, slewing mechanisms, bogies, winches, medium to large cranes and construction machinery.
Characteristics:
• Robust design
• Can handle rough assembly
• Suitable for vibration conditions
• High axial loads
Contact one of our experts for more information.
Material in rings: 42CrMo4V
Material in rings: 42CrMo4V
Material in rings: 42CrMo4V
Material in rings: C45N
IMO slewing ring bearings series 500 are equipped with combination bearings (roller & balls) which allow very high radial loads. The construction provides a very long service life if the axial load is dominant. They have good circular accuracy combined with high stiffness.
Operating conditions:
• Permissible temperature range -25°C to +70°C
• Max permitted rotation speed 20000 / ball diameter
• Vertical axis only
• Pressure load only
• Bolt class 10,9
Areas of use:
Recyclers, stackers and other bulk material handling equipment, turntables.
Characteristics:
• High axial load capacity
• Long service life under axial load
• High stiffness
• Good running precision
Contact one of our experts for more information.
Material in rings: 42CrMo4V
Material in rings: 42CrMo4V
IMO slewing ring bearing series 300 combines high precision with high radial loads, high tilting moments and long service life. They have double raceways and high rigidity.
Operating conditions:
• Permissible temperature range -25°C to +70°C
• Max permitted rotation speed 20000 / ball diameter
• Pressure load
• Bolt class 10,9
Areas of use:
Heavy harbor cranes, ship cranes, tower cranes and grapple cranes, radar antennas, wind turbine main assemblies, tunnel boring machines and loading stands (oil, gas), machine tools (where high duty cycles are required).
Characteristics:
• High precision
• Highest axial load capacity
• High tilt moment
• High stiffness
• Long service life
Contact one of our experts for more information.
Material in rings: 42CrMo4V
Material in rings: 42CrMo4V
Material in rings: 42CrMo4V
Material in rings: 42CrMo4V
Material in rings: 42CrMo4V
Material in rings: 42CrMo4V
Material in rings: 42CrMo4V
Material in rings: 42CrMo4V
Material in rings:
Looking for slewing rings? MO GmbH manufactures frictionless slewing bearing rings with diameters as large as 6 m and weighing more than 20 tons. They are designed to be able to handle high axial, radial and tilt moments, simultaneously.
